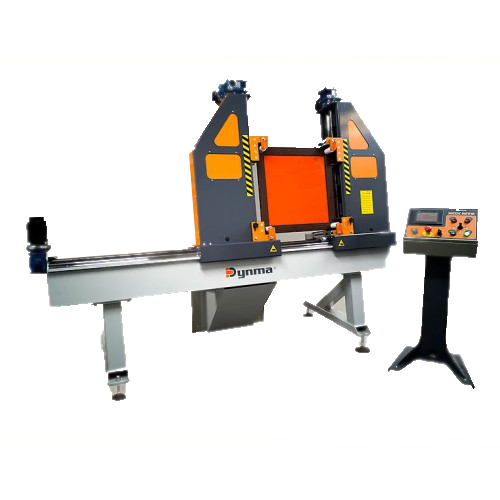

BOX MTS Electronic Press for Drawer and Door Assembly

The Dynma BOX MTS Electronic Press for Drawer and Door Assembly  is an electronic press with servo-motor technology is specifically designed for integration into industry 4.0, with a capacity of instantaneous adjustment by different systems, using Ethernet communication, reading bar codes and memorization of lists of models. Its studied design, the electronic system of movement and tightening by servo-motors, together with the use of linear guides, brings a plus of speed and accuracy in the maneuver.

The BOX MTS is a high performance press, ideal for production of a wide variety of dimensions at high working rates. It is extremely effective with any type of joint (smooth miter, shank, dovetail, etc.), ensuring a perfect closing and squaring of drawers or frames and minimizing adjustment times.

Please check the .pdf file below for all the technical specs.

Features

• Max. / min. length ( X ) 1380 / 230 mm
• Max. / min. height ( Y ) 840 / 240 mm
• Max. / min. width ( Z ) 250 / 0 mm
• Max. projected end ( V ) 40 mm
• Max. front thickness ( T ) 35 mm
• Max. lateral strength ( Fx ) 1.200 kg
• Max. vertical strength ( Fy ) 1.200 kg
• Voltage 400v.
• Electrical power 3.0 kW.
• Working pressure 4 bar
• Air consumption 4 Nl / Cycle.
• Length x Height x Width (LxHxW ) 2500 x 2000 x 1000 mm
• Weight 470 kg

Benefits

• High performance press
• Ideal for production of a wide variety of dimensions at high working rates
• Extremely effective with any type of joint
• Ensures a perfect closing and squaring of drawers or frames
• Minimizes adjustment times
