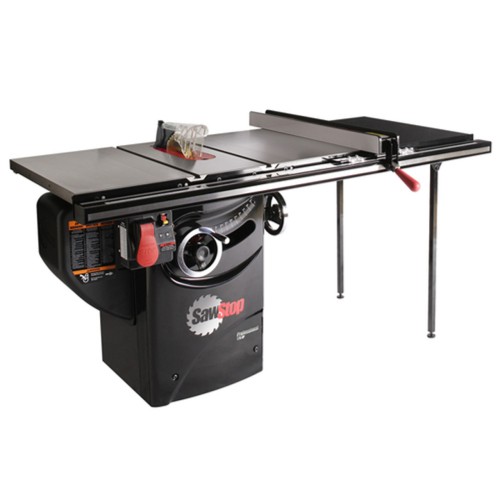

SawStop Professional Cabinet Saw - 3HP, 230V, 60Hz, 10

SawStop Professional Cabinet Saw - 3HP, 230V, 60Hz, 10" W/ 36" T-Glide

Brand:
Product Code: PCS31230-TGP236
Stock In Stock

Product Description

The SawStop® 10" Professional Cabinet Saw provides superior performance to meet the demands of discerning craftsmen and woodworkers. With SawStop™s legendary safety system, ground breaking dust collection and flawless fit and finish it™s ready to help you get the job done.

Now the Professional Cabinet Saw is available in a 1.75HP motor configuration. Plug in anywhere with 110 volt convenience!

SPECIFICATIONS:
Motor: (all 60Hz, TEFC): 1.75 or 3 hp available
Cabinet footprint: 19 3/8" w x 19 3/8" d
Cast iron table: 20" w x 27" d
Cast iron table (w/ extension wings): 44" w x 27" d
Extension wings: 12" w x 27" d each
Extension table 30 in rails: 12" w x 27" d
Extension table 36 in rails: 23 3/4" w x 27" d
Extension table 52 in rails: 40 1/8" w x 27" d
Weights - table saw only: 317 lb (1.75 hp), 335 lbs (3 hp)
Weights - w/ 30 in fence systems: 367 lb (1.75 hp), 380 lbs (3 hp)
Weights - w/ 36 in fence systems: 408 lb (1.75 hp), 426 lbs (3 hp)
Weights - w/ 52 in fence systems: 431 lb (1.75 hp), 449 lbs (3 hp)
Weights - (optional cast iron wings): N/A
Shipping weight (approx.): 390 lb (table saw only)
Blade: 40-tooth, 5/8" arbor
Blade diameter: 10"
Blade tilt: Left
Blade kerf: 0.118" (3mm)
Blade plate thickness: 0.078" (2mm)
Max. depth of cut, blade at 0º: 3 1/8"
Max. depth of cut, blade at 45º: 2 1/4"
Max. rip, right of blade - 30 in: 30" (w/ 30" rails)
Max. rip, right of blade - 36 in: 36" (w/ 36" rails)
Max. rip, right of blade - 52 in: 52" (w/ 52" rails)
Max. rip, left of blade: 12"
Max. rip, left of blade (options): N/A
Dado diameter: 8" (requires 8R2 brake, dado insert)
Dado max. width: 13/16"
Arbor diameter at blade: 5/8"
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10 1/4"
Table behind blade (max. elevation): 7 1/2"
Arbor Runout: 0.001" Maximum allowable runout
Table flatness measured diagonally: 0.010" Maximum gap
Blade alignment with miter slot: 0.010" Maximum displacement
Deviation of miter gauge indexing stops from actual: ±0.25º
Alignment between splitter and blade: 0.010" Maximum difference
Miter slots T-shaped: 3/4" at top, 1" at bottom, 3/8" deep
Miter slots center: 11 1/8" center-to-center
Miter slots info: 5 1/2" (arbor flange to center of right slot)
Dust collection port diameter: 4"
Riving knife / splitter thickness: 0.090" (2.3 mm)
Blade guard (dust collection): polycarbonate, extends 1 3/16" right of blade (3HP)
Blade guard (micro guard): polycarbonate, extends 1" right of blade (1.75HP)
Insert: zero clr., phenolic core, melamine surfaces
Hand wheels: 7" diameter, cast iron w/ chrome handle
Belts: 2 V-ribbed belts – arbor b. static dissipative
Overall saw dimensions: 44" w x 29 3/4" d x 34" h
Overall saw dimensions 30 in: 61 3/4" w x 31 1/8" d x 34"h
Overall saw dimensions 36 in: 69 1/8" w x 33" d x 34" h
Overall saw dimensions 52 in: 85 1/4" w x 33" d x 34" h
Motor configuration 1:PCS175: 1.75 hp, 110v, 14 A
Motor configuration 2: (user config. to 220v w/optional kit)
Motor configuration 3: PCS31230: 3 hp, 1 phase, 230 V, 13 A
