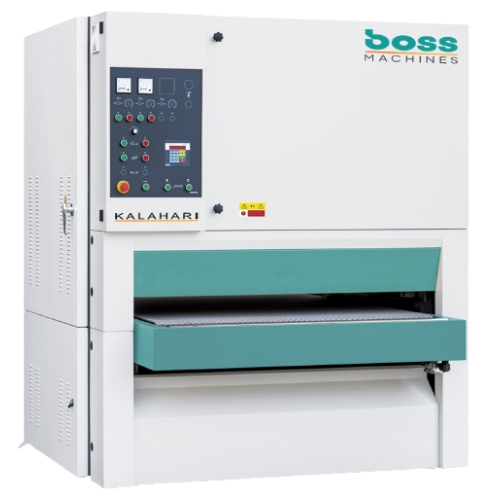

Kalahari 2 Head  650 | 1100 R-RC Wide Belt Sander

Kalahari 2 Head 650 | 1100 R-RC Wide Belt Sander

  • Ask for price

Brand:
Product Code: Kalahari 2 Head 650 | 1100 R-RC Wide Belt Sander
Stock In Stock

Product Description

The Boss Kalahari 2 Head Wide Belt Sander has been designed to eliminate distortion and maximize sanding precision.

Available in the following models:

  •      •   650R-RC
  •      •   1100R-RC





Benefits:

  • OPTIBLET triangle feed belt - no vibration/longer life
  • Automatic braking system which reduces belt breakage in the event of miss sanding belt tracking and/or power failutre
  • Motorized air jet blowers to clean and cool sanding belt for longer life
  • SKF bearings, European electrics, dynamically balanced rollers, high-efficiency gearbox with variable speed

There are no reviews for this product.

Write a review

Note: HTML is not translated!
Bad           Good
Captcha



Key Advantages:

  •      •   Strong, heat-treated, heavy duty frame for maximum structural stability
  •
  •      •   Main motors positioned inside the frame for protection
  •
  •      •   Pressure units at the front and rear of each working unit with independent variable pressure control
  •
  •      •   Triple press roller structure ensures stability of boards during sanding
  •
  •      •   Strong, heat-treated, heavy duty frame for maximum structural stability and tolerance of planarity within 0.05 mm (0.002")



Working Units

  •      •   1st Working Unit: Steel sanding roller with a diameter of 9.4" (240 mm)
  •            • Sanding belt tension unit
  •            • Electronic oscillation
  •            • Dust hood
  •            • Helicoidal grooves for cooling
  •            • Safety systems
  •            • Air jet blower to clean and cool the belt
  •            • Belt size: 26.8" x 86.6"



  •      •   2nd Working Unit: Combination of roller and pad with a diameter of 5.5" and 55 shore hardness
  •            • Sanding belt tension unit
  • ​​​​​​​           • Electronic oscillation
  • ​​​​​​​           • Dust hood
  • ​​​​​​​           • Safety systems
  • ​​​​​​​           • Pads can be adjusted up and down
  • ​​​​​​​           • Air jet blower to clean and cool the belt​​​​​​​
  • ​​​​​​​           • Belt size: 26.8" x 86.6"
   650R-RC 1100R-RC
 Working width  1.6" - 26"  1.6" - 43"
 Working thickness  0.1" - 5.9"   0.1" - 5.9"
 Minimum working length  15.4"   18"
 Feeding speed  62 feet / min (inverter)  62 feet / min (inverter)
 1st roller diameter  Ø 9.4"   Ø 9.4"
 2nd roller diameter  Ø 5.5"   Ø 7.1"
 First belt speed  72 feet / s  72 feet / s
 Second belt speed  46 feet / s  52 feet / s
 Sanding belt size  27" x 87"   44" x 103"
 Conveyor size  26" x 153"   44" x 157"
 Total power  38 HP  55 HP
 FIrst belt motor  30 HP  30 HP
 Second belt motor  25 HP  25 HP
 Lift & decline motor  0.5 HP  0.5 HP
 Brush motor  0.3 HP  0.3 HP
 Feeding motor  2 HP (inverter)  4 HP
 Working pressure  0.4 - 0.8 Mpa  0.4 - 0.8 Mpa
 Compressed air consumption  1.5 CBM/min  1.5 CBM/min
 Approximate dimensions  90" x 50" x 85"  90" x 70" x 90"
 Approximate weight  4,900 lbs  7,700 lbs
